| RCV-5000 IR to RS-232 Output Table |
|
| Device: InFocus LP 820 Projector |
|
|
|
|

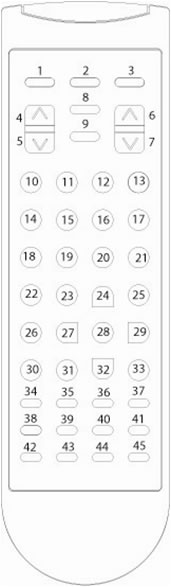

| Infrared Remote Control: Celadon, SC-45 |
|
| Infrared Code Format: NEC - Device ID: FF00 |
| Infrared Receiver: Celadon RCV-5000 Infrared to RS-232 Receiver |
| RCV-5000 Data File: infocus3_r.hex |
|
| Data - 19200 baud, 8, N, 1, ASCII OUTPUT |
| Std pinout |
|
|
|
|
|
|
|
|
|
|
|
| Command |
SC-45 Button |
ASCII Output |
| Power - off |
1 |
(PWR0) |
| Power - on |
2 |
(PWR1) |
| Menu Enable - disable |
3 |
(MNU0) |
| Menu Enable - enable |
4 |
(MNU1) |
| Menu Navigation - up |
5 |
(NAV0) |
| Menu Navigation - down |
6 |
(NAV1) |
| Menu Navigation - select |
7 |
(NAV4) |
| Source (SRC) - computer 1 |
8 |
(SRC0) |
| Source (SRC) - computer 2 |
9 |
(SRC1) |
| Source (SRC) - computer 3 |
10 |
(SRC2) |
| Source (SRC) - video 1 |
11 |
(SRC3) |
| Source (SRC) - video 2 |
12 |
(SRC4) |
| Source (SRC) - video 3 |
13 |
(SRC5) |
| Source (SRC) - video1rgb |
14 |
(SRC6) |
| Computer Source Advance |
15 |
(CAD1) |
| Video Source Advance |
16 |
(VAD1) |
| IR - disable |
17 |
(IRE0) |
| IR - enable |
18 |
(IRE1) |
|
|
|
